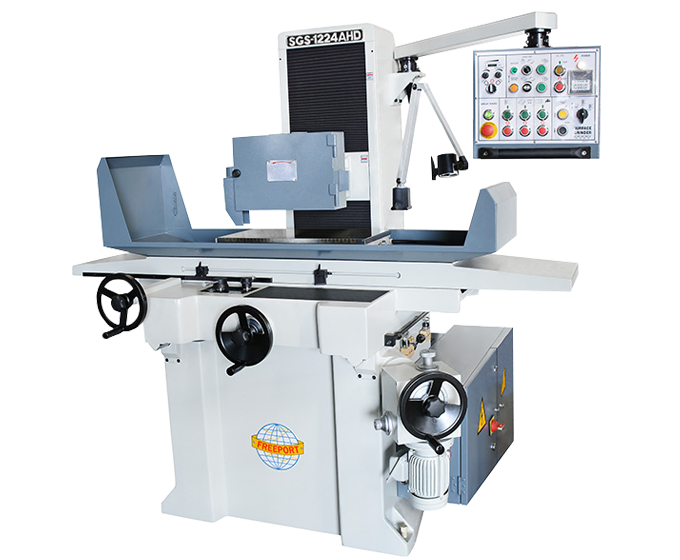

Manual Surface Grinder
SGS-1224 ( AHD / ND )
Precision Surface Grinder | Three-Axis Automatic Control & High-Rigidity Mold Machining
-
Suitable for medium-sized workpieces, combining high precision with efficient machining performance.
-
High-rigidity structural design ensures stable and smooth grinding operation.
-
Ideal for machining molds, fixtures, and precision metal components.
Machine Comparison
AHD vs. ND Series Comparison
| Core Specifications | AHD Series | ND Series |
|---|---|---|
| Automation Features | Automatic Cycles on the X/Y/Z Axes | Automatic Cycles on the X/Y/Z Axes |

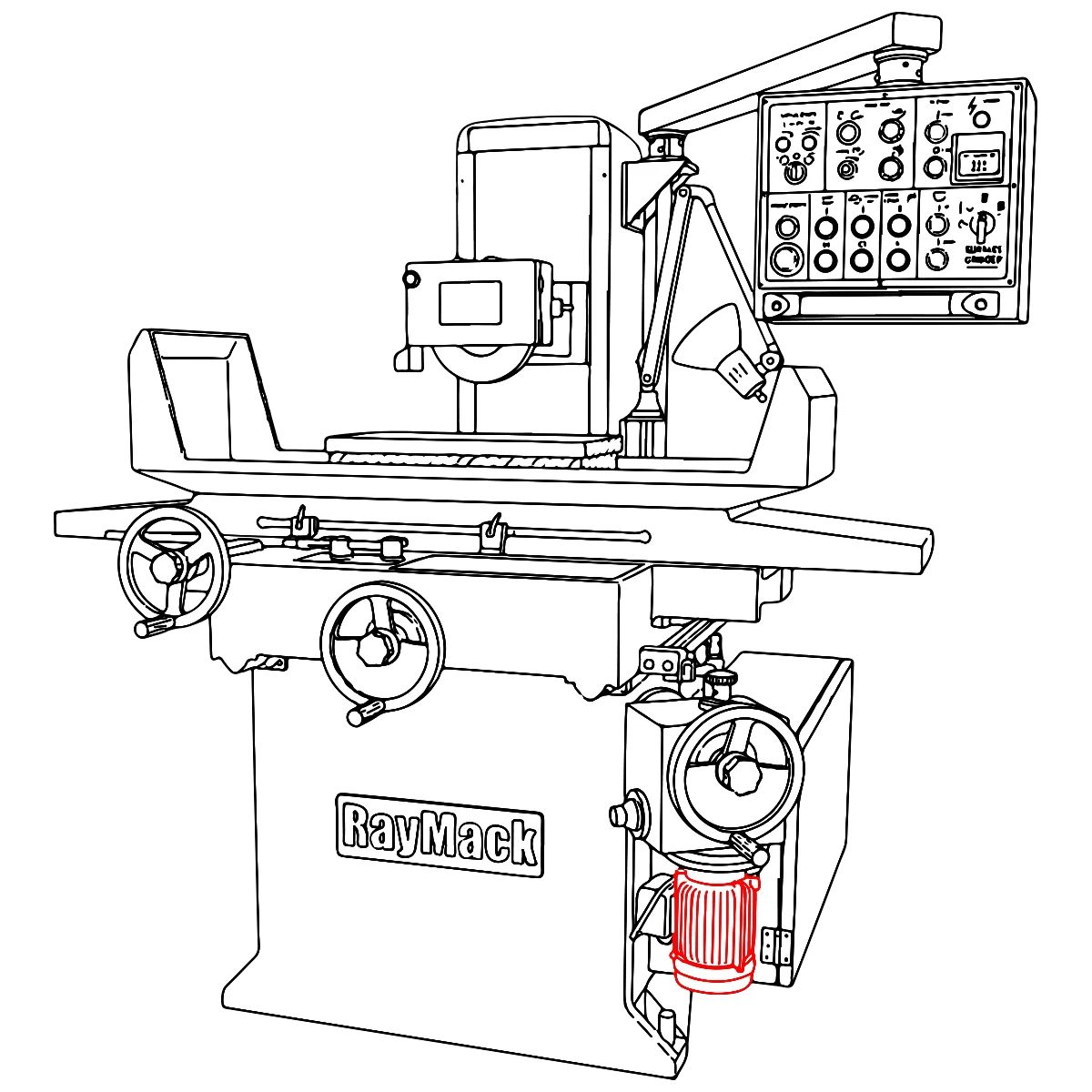

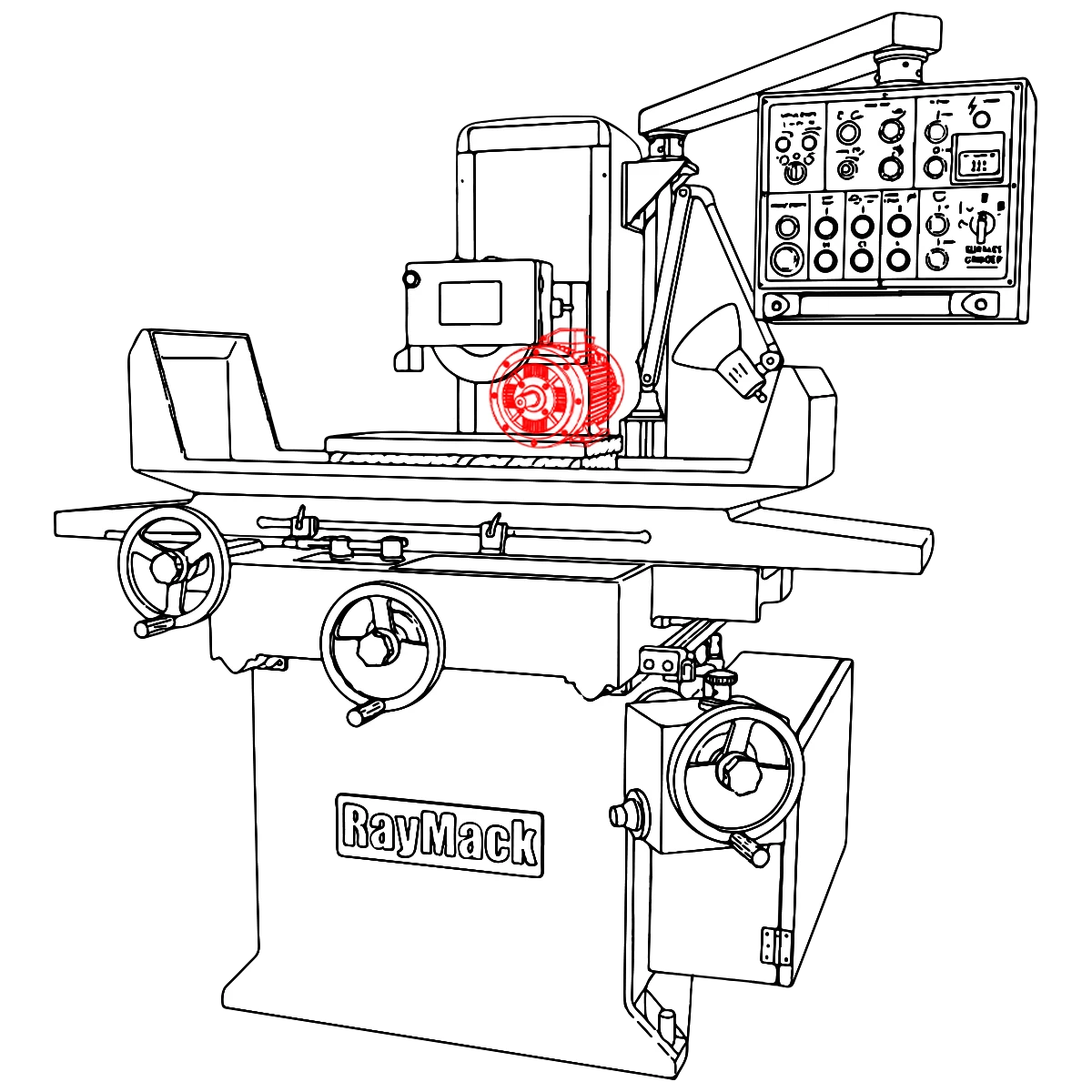

| Vertical-Axis Configuration | Standard Precision Configuration | High-Horsepower / High-Torque Power Configuration |
| Design Advantages | Global Parts Support and High Stability | Designed for European and American Markets with Enhanced Vertical Feed Efficiency |
| Market Availability | Available Worldwide | Available Exclusively in Europe and the Americas |

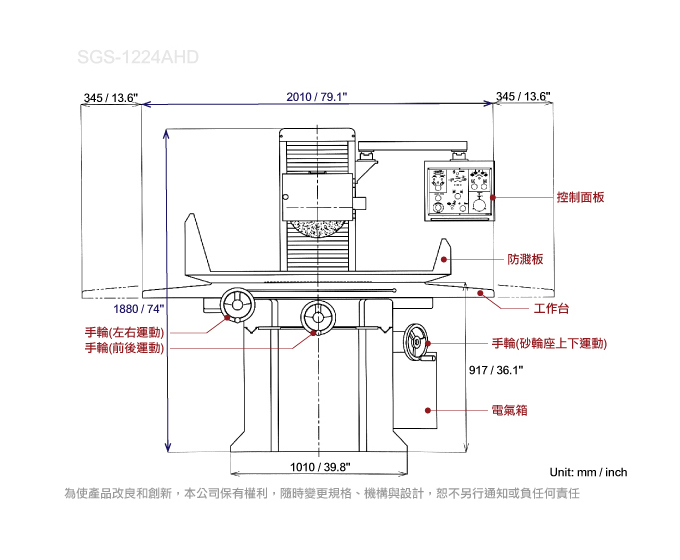

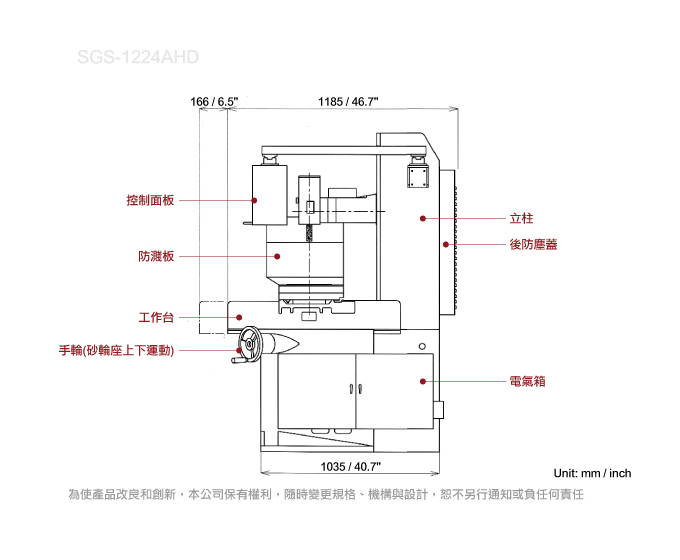

Specifications
Model: SGS-1224
| Model | SGS-1224 |
|---|---|
| AHD / ND | |
| Table Size (W x L) | 260 x 600 mm (10.2" x 23.6") |
| Maximum Grinding Area (W x L) | 304 x 609 mm (12" x 24") |
| Maximum Longitudinal Table Travel | 690 mm (27.2") |
| Maximum Cross Table Travel | 332 mm (13.1") |
| Maximum Distance from Table Surface to Spindle Center | 600 mm (23.6") |
| Longitudinal Table Speed | 6 ~ 25 M/min |
| Crossfeed per Stroke (60HZ) | 0 ~ 9 mm (0" ~ 0.35") |
| Vertical Handwheel per Graduation (1 gra) | 0.01 mm (0.0004") |
| Vertical Handwheel per Revolution (1 rev) | 2 mm (0.1") |
| Crossfeed Handwheel per Graduation (1 gra) | 0.01 mm (0.0004") |
| Crossfeed Handwheel per Revolution (1 rev) | 4 mm (0.2") |
| Fine Vertical Downfeed per Graduation (1 gra) | 0.002 mm (0.00008") |
| Fine Vertical Downfeed per Revolution (1 rev) | 0.2 mm (0.01") |
| Longitudinal Stroke Adjustment Range | 50~609 mm (2" ~ 24") |
| Cross Stroke Adjustment Range | 0~304 mm (0" ~ 12") |
| Spindle Motor | 5HP x 4P |
| Hydraulic Pump Motor | 2HP x 6P |
| Crossfeed Motor | 1/5HP x 6P |
| Vertical Feed Motor | 1/4HP x 4P |
| Grinding Wheel Size (O.D. x W x I.D.) | 355 x 32 x 127 mm(14" x 1.25" x 5") |
| Spindle Speed (60 / 50HZ) | 1750 RPM / 60 HZ (1450 RPM / 50 HZ) |
| Coolant Pump | 1/8HP (Optional 1/4HP) |
| Dust Collector Motor | 1/2HP x 2P |
| Machine Net Weight | 1850 kgs (4070 lbs) |
| Gross Weight | 2150 kgs (4730 lbs) |
| Packing Dimensions (L x W x H) mm | 2260 x 1740 x 2210 mm (88.9" x 68.5" x 87") |
Industry Applications
-
Application ScopeSuitable for surface grinding of mold parts, fixture base plates, medium-sized mechanical components, and precision metal workpieces.
Offers stable machining rigidity and an optimized table travel range, balancing precision with machining efficiency. -
Workpiece MaterialsSuitable for precision grinding of steel, cast iron, non-ferrous metals, and selected hard materials.
Effectively improves workpiece flatness and surface finish while ensuring stable machining quality. -
Industry ApplicationsWidely used in mold manufacturing, mechanical processing, fixture design, and precision parts industries.
Especially suitable for precision grinding of medium-sized workpieces and small to medium batch production.
